DC 12V Capacitive Touch Monitor 10.1 Inch Widescreen USB3.0 Powered Multi Points

Name: DC 12V Capacitive Touch Monitor 101 Inch Widescreen USB30 Powered Multi Points
Brand: SHINHO
Price: 1 USD

Wholesale DC 12V Capacitive Touch Monitor 10.1 Inch Widescreen USB3.0 Powered Multi Points from china suppliers

Brand Name : SHINHO

Model Number : SL101

Certification : CE, FCC, RoHS

Place of Origin : Shenzhen,China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal, MoneyGram

Product Name : 10.1 Inch USB3.0 Powered LCD Monitor

Resolution : 1280*800 widescreen

Brightness (cd/m²) : 400 nits (1000nits optional)

Working voltage : DC 12V

Touchscreen Type : Capacitive touch screen

Interface : USB3.0 (support video, power and touch)

Contact Now

10.1 Inch Widescreen USB3.0 Powered LCD Monitor Capacitive Touch Screen

Features

10.1 inch Industrial LCD panel, wide viewing angle, high nits, true color
1280*800 widescreen
400nits brightness (1000nits optional)
Adopt multi-points PCAP touch panel, high sensitive and fast-response
Support video signal, power and touch over a single USB3.0 cable
High performance mainboard, 7x24 continuous operation
Support wall mounting, embedded mounting, desk stand mouting, etc

Specifications

Model: SL101
LCD panel
Panel size	10.1"
Resolution	1280*800
Aspect ratio	16:10
Support Color	16.7M colors
Brightness (cd/m²)	500 nits
Contrast ratio	800:1
View angle	85°/85°/85°/85° (R/L/U/D)
Touch panel
Touchscreen Type	Project Capacitive Touch (10 points )
Surface Hardness	7H
Luminousness	90%
Touch Interface	USB (RS232 optional)
Touch response time	2ms
Working Life	>50 million times
Touch options	(5 wires restive touch, IR touch optional)
Signal Ports
USB	1xUSB3.0 (support video signal, power, and touch over a single USB3.0 cable)
OSD
OSD control	Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
Support languages	English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
Support OS	Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
Power Supply
External Power Supply	AC 100 - 240V, 50-60Hz
Working voltage	DC 12V
Power consumption	≤15W
Enclosure
Material	aluminium alloy bezel+High strength cold rolled steel back case
Color	Black, Silver
VESA mounting	100x100mm
IP grade	Front panel IP65 waterproof
Operating Environment
Temperature Range	operating: -10 to 60°C, storage: -20 to 80°C
Relative humidity	operating: 10% to 80%, storage: 5% to 90%
Packing Details
Net weight	1kg
Gross weight	1.5kg
Product Dimension	25.717.52.75cm
Packing size	333010cm
Accessories	USB3.0 cable
Other
Mounting	embedded mounting screws
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS

Applications

Electric Car DC charger

Transaction Kiosks

Car parks management

Access control

Ticketing systems

Machine vending reverse recycled

Smart Home

Medical testing equipment

Electrical control cabinet

Pictures

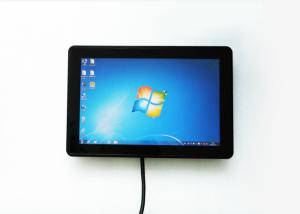

DC 12V Capacitive Touch Monitor 10.1 Inch Widescreen USB3.0 Powered Multi Points

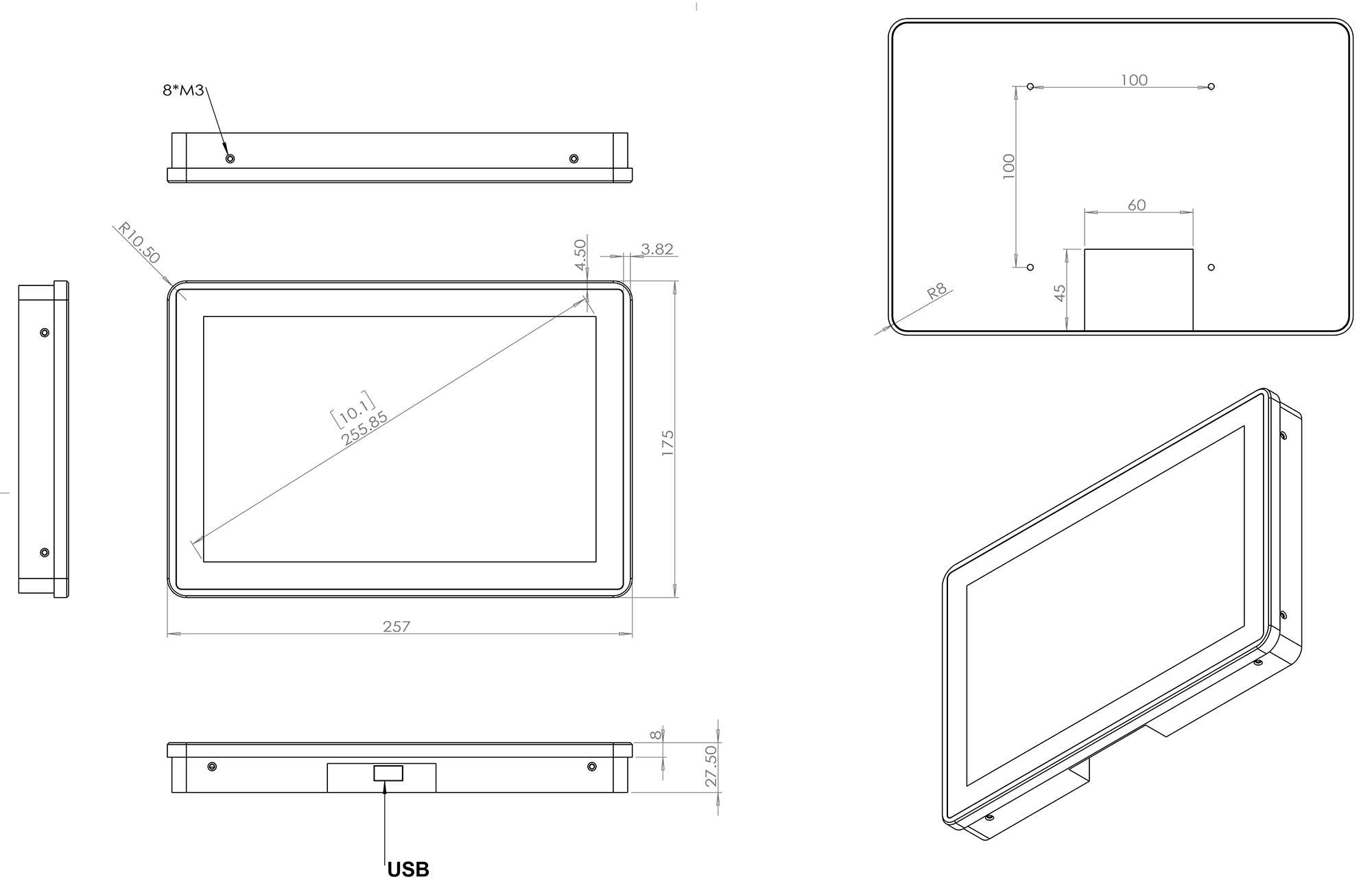

Drawing

DC 12V Capacitive Touch Monitor 10.1 Inch Widescreen USB3.0 Powered Multi Points
